TECHNICAL DATA:

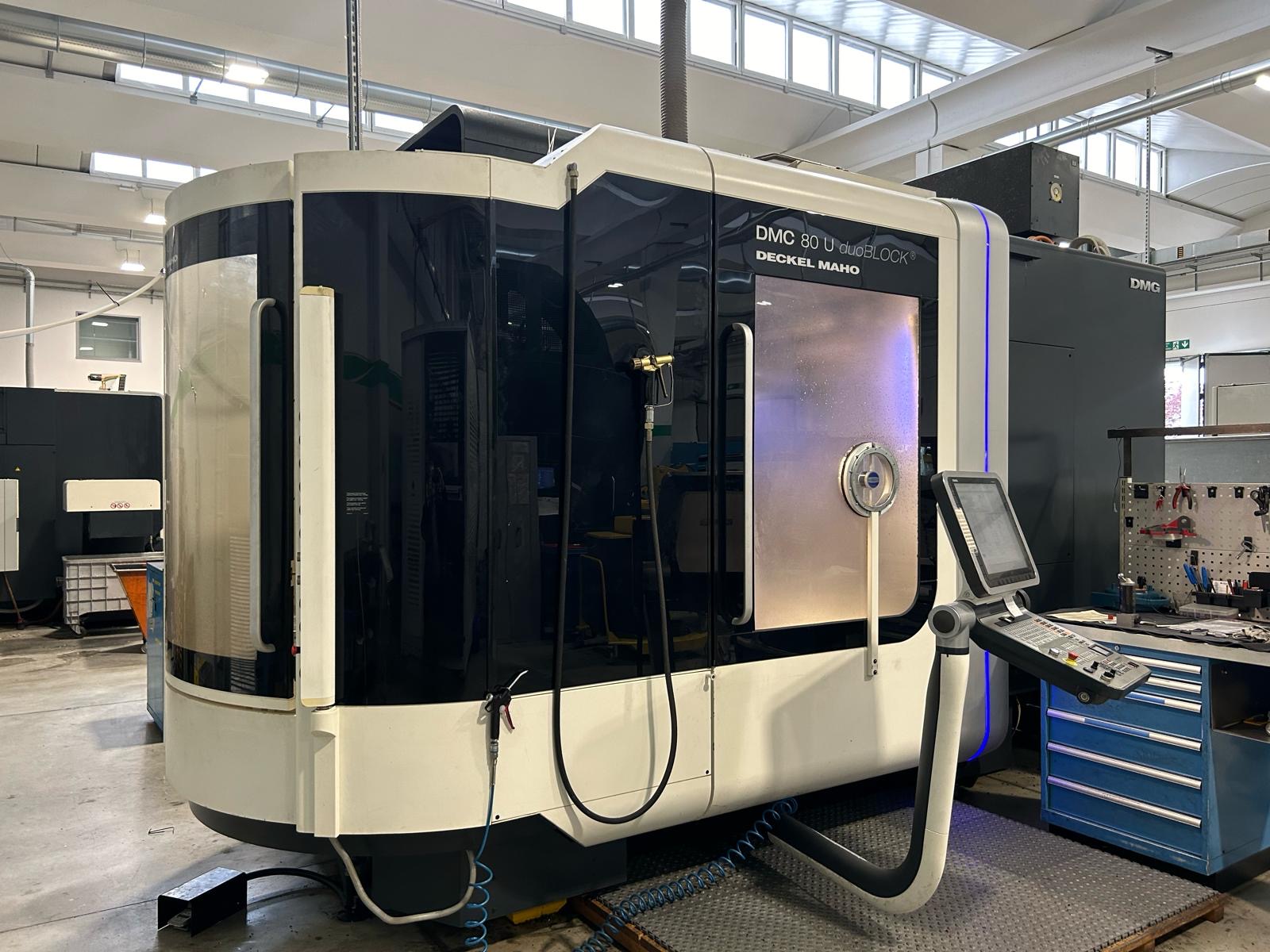

Heidenhain iTNC 530 HSCI CNC

TRAVELS:
X axis travel: 800 mm
Y axis travel: 1.050 mm
Z axis travel: 800 mm
B axis travel: 180°
C axis travel: 360°

ADVANCEMENTS:
Rapid feed speed in the X, Y, Z axes: mm/min 40.000
Acceleration in the X, Y, Z axes: m/s2 7 / 6.5 / 6.5

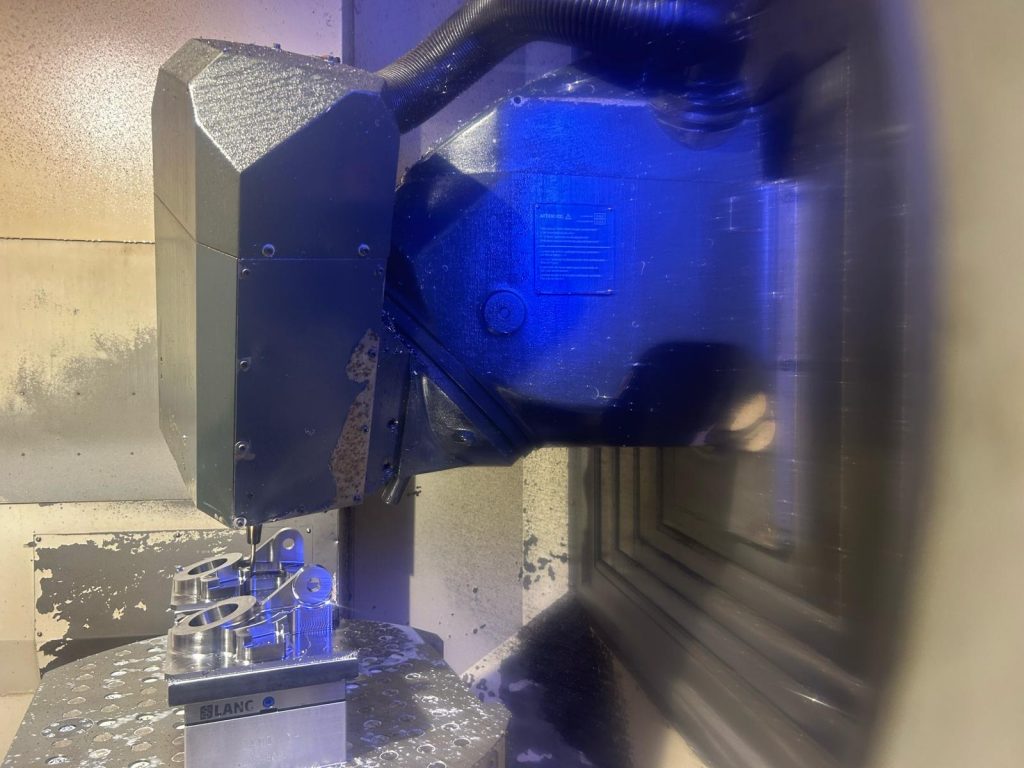

ELECTRO SPINDLE:
Electrospindle rotation speed: 18.000 rpm
Tool attachment cone: ISO 40
Electrospindle power: kW 35
Torque: Nm 130

TABLE:
Fixing surface: 800 x 630 mm
Maximum capacity: 1.000 kg

Machine complete with:

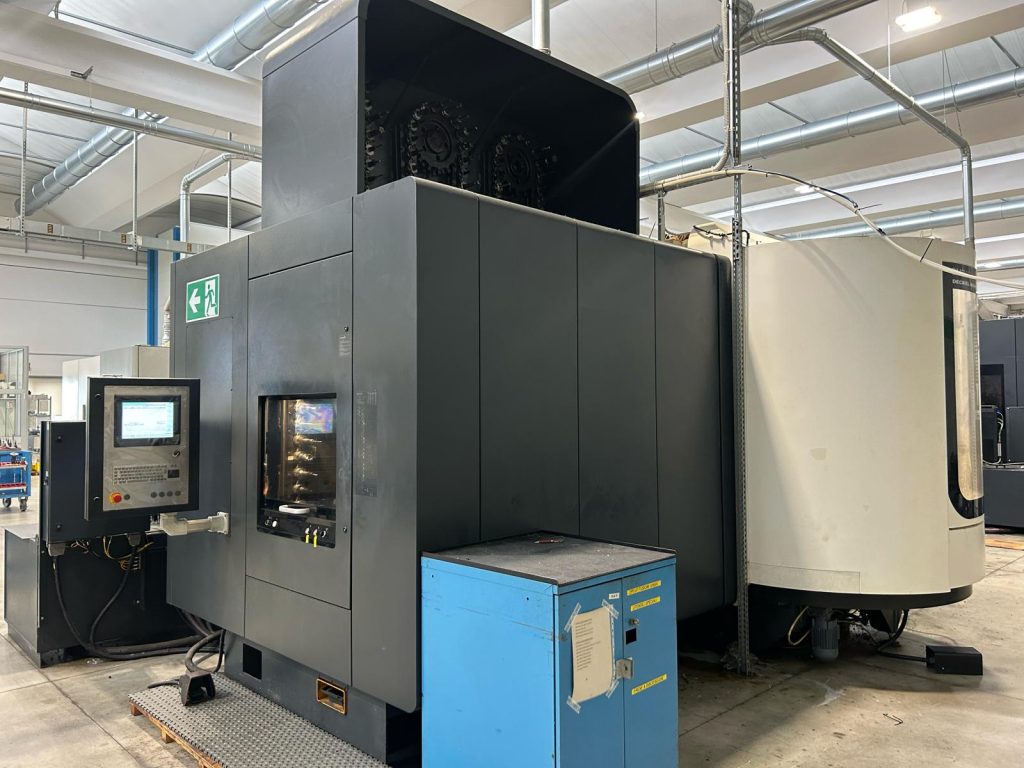

• Tool changer 240 positions
• Heidenhain TS640 workpiece probe
• Tool breakage control in the warehouse
• QuickSET 3D predisposition
• High pressure through the spindle 40 bar

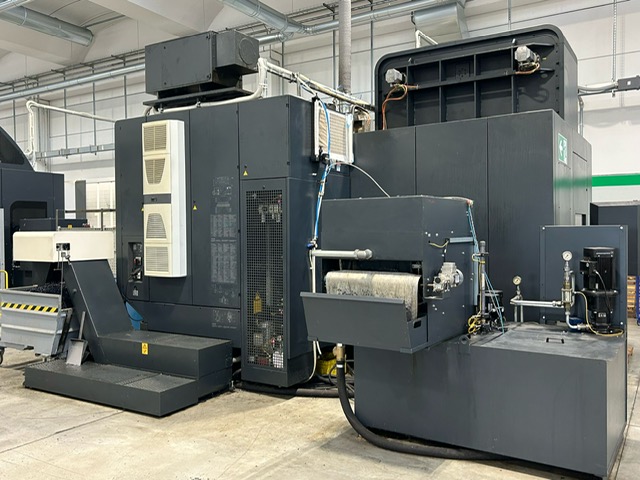

• Tank with paper filter
• Integrated fume extractor
• Tool loading/unloading side control panel
• Power failure protection package
• FASTEMS automation preparation
• Instruction manuals and CE declaration

Year of construction: 2011

The images and technical specifications are provided for illustrative purposes only and do not constitute a constractual element.
