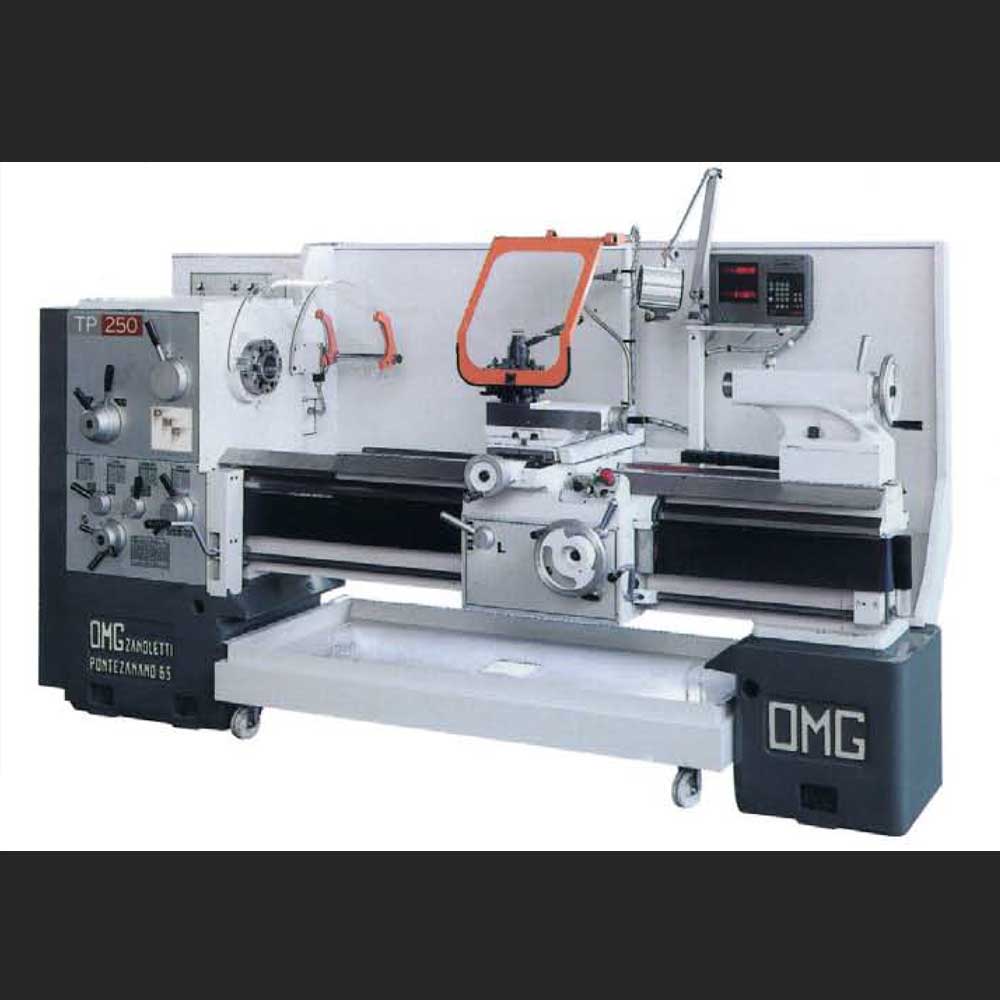

HORIZONTAL LATHE MACHINE OMG ZANOLETTI TP 210×1500
TECHNICAL DATA:
- Spindle speed range: 28-1500 r/min
- Swing over bed: mm 460
- Swing over natural gap: mm 760
- Swing over carriage: mm 290
- Bar passage: mm 68
- Display Anilam 3 axis
- Pinto self-centering spindle with double guide diam. 225
- Quick change tool turret B type
- 02 steady rests
- Plateau with 4 indipendent brands
- Natural gap
- Covered guides
- Instantaneous change of speed by a push-button panel
- Weight kg 2500
The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
