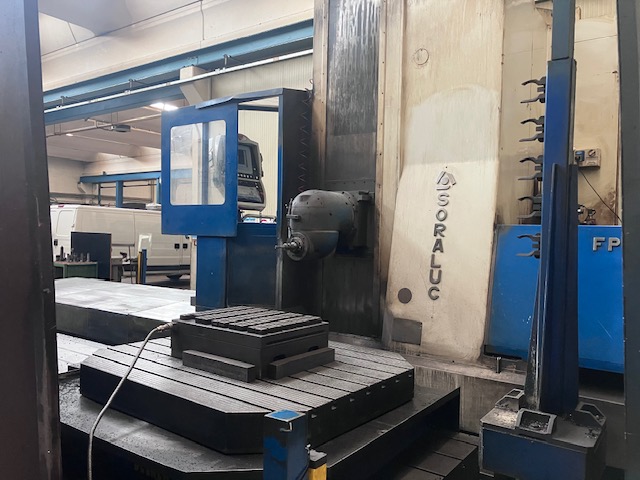

UPRIGHT GANTRY MILLING MACHINE SORALUCE FP600

CNC Milling Machines / Venduto /

Download the technical sheet

TECHNICAL SPECIFICATIONS:

CNC: SELCA 4045

_

TRAVELS
Longitudinal travel: 6,000 mm
Vertical travel: 2,000 mm
Transverse RAM travel: 1,200 mm

_

SPINDLE
Motor power: 30 kW
Spindle head taper: DIN 69871-B ISO50
Spindle speed: 4,000 rpm

_

FEEDS AND RAPID TRAVERSES
Maximum working feed rate: 5,000 mm/min
Rapid traverse: 15,000 mm/min
Maximum cutting force on the tool: 11,000 N

_

Year of manufacture: 2002

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
