TECHNICAL DATA:

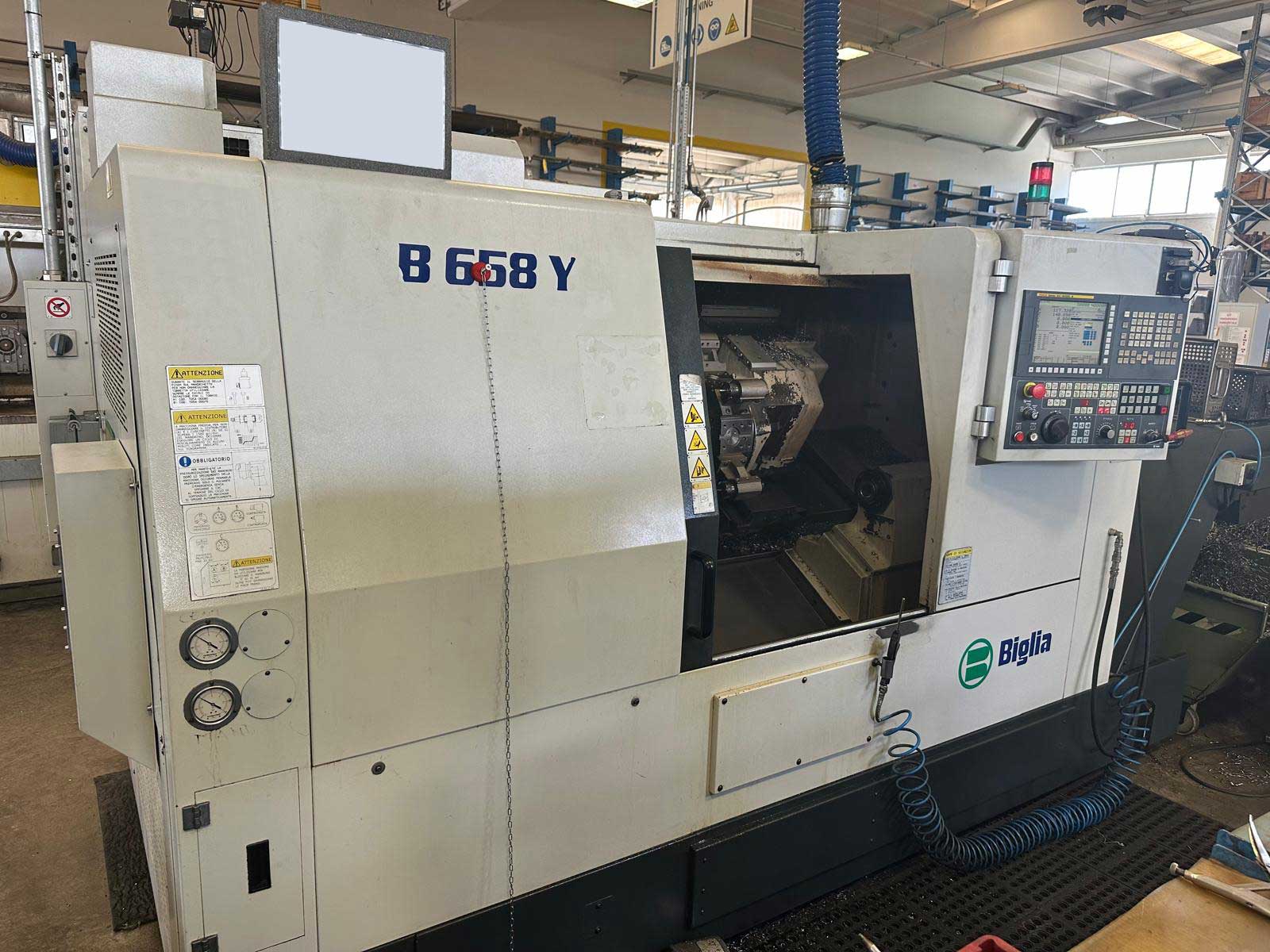

Fanuc 18i – T CNC
WORKING RANGE
Maximum workable bar diameter: 80 mm
Maximum workable bar diameter: 80 mm Machinable length: 410 mm
Maximum machinable length: 670 mm
Maximum rotating diameter: 600 mm
MAIN SPINDLE
Maximum rotation speed: 3.500 rpm
Spindle nose: ASA 8″
Spindle bore: 91 mm
Internal bearing diameter: 140 mm
Motor power: 22 kW
Motor torque: 539 Nm
TAILSTOCK
Tailstock taper: CM 5 with CM4 reduction
Automatic B-axis positioning: 660 mm
B-axis rapid traverse: 15 m/min

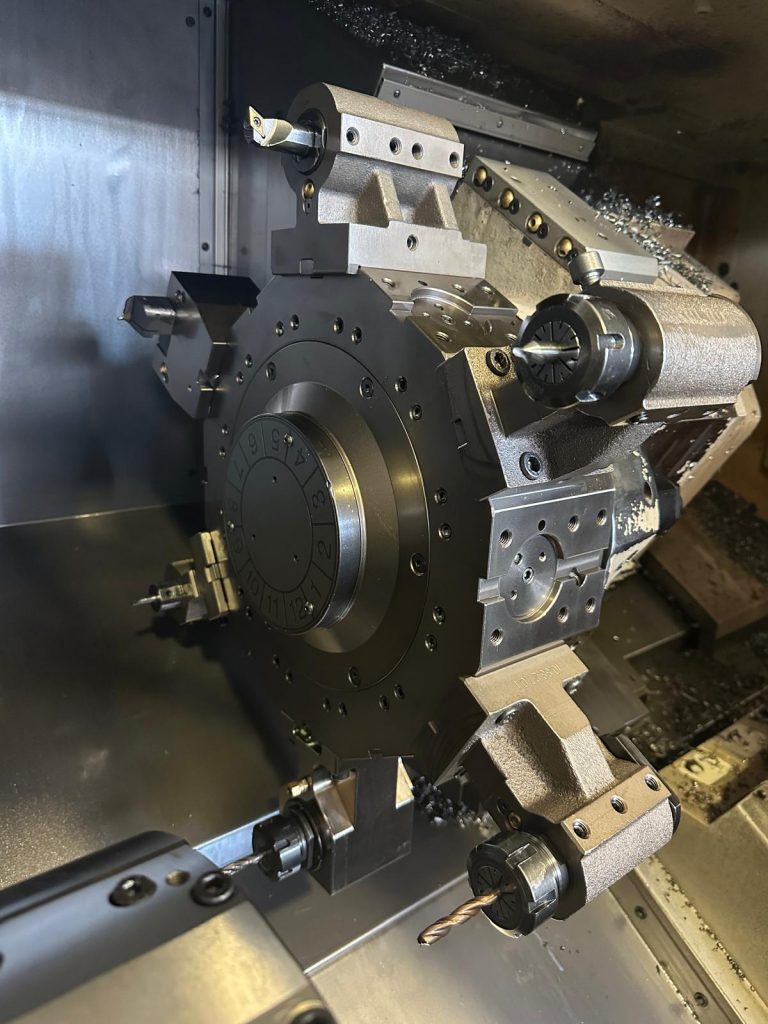

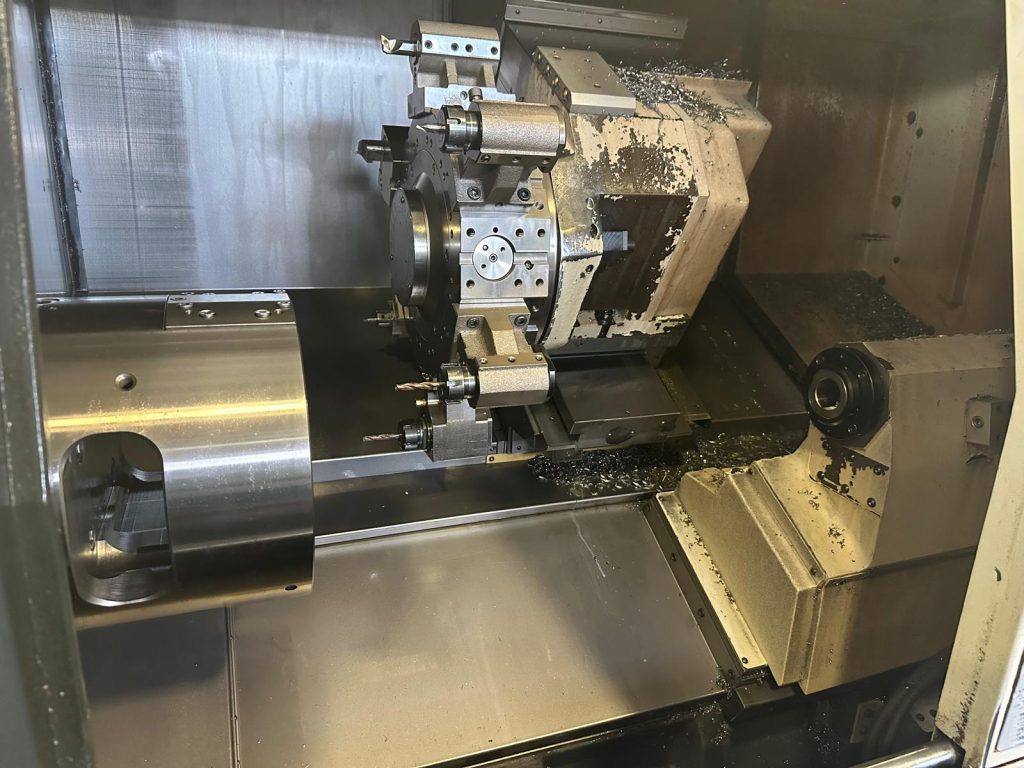

TURRET
Number of positions: 12
Tool shank for external/internal: 20 x 20 – 25 x 25 – Ø32-40-50 mm
Rotation time (1 position): 0.15 sec
DRIVED TOOLS
Number of positions: No. 12
Maximum rotation speed: 4.000 rpm
Motor power: 3.7 kW
Motor torque: 70 Nm
C-AXIS
Minimum programmable value: 0,001°
Maximum rapid traverse speed: 100 rpm
AXES
X-axis travel: 255 mm
Z-axis travel: 670 mm
Y-axis travel: 110 mm (+ 60 / – 50)
X-axis rapid traverse: 20 m/min
Z-axis rapid traverse: 24 m/min
Y-axis rapid traverse: 7.5 m/min
COOLANT
Tank capacity: 250 L
Pump flow rate: 120 L/min
Pump motor power: 0,75 kW

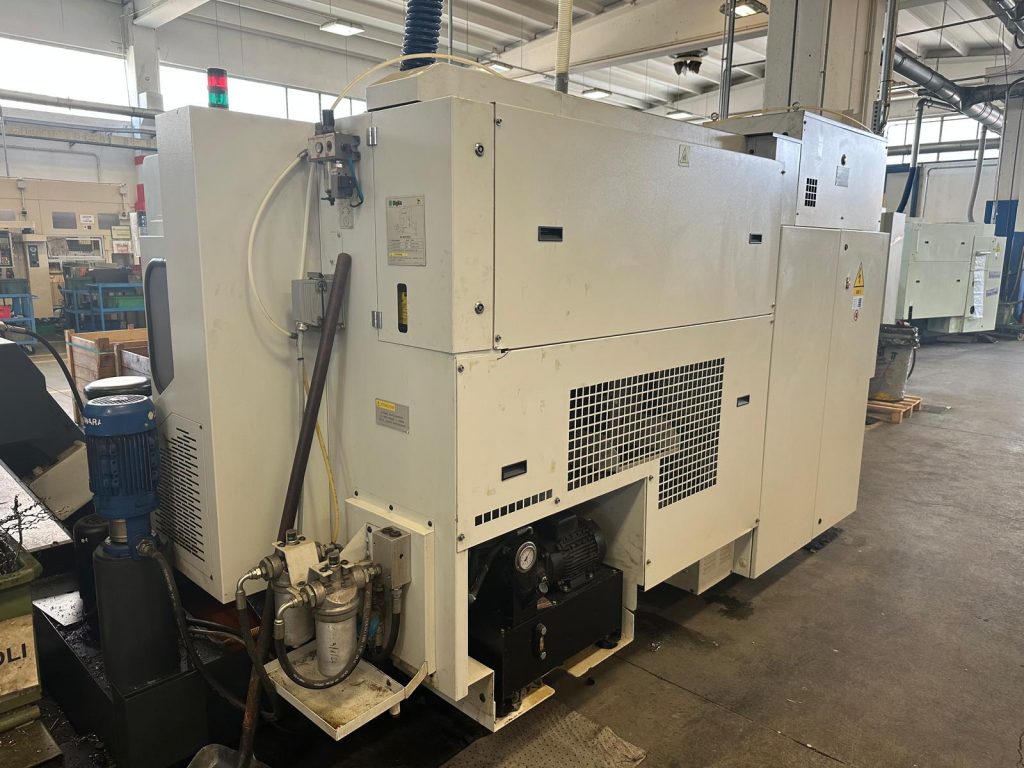

DIMENSIONS – WEIGHT
Overall dimensions with chip conveyor: 4.450 x 1.900 x 2.100 mm
Height of spindle center: 1.060 mm
Weight with chip conveyor: 6.300 kg
Machine equipment:

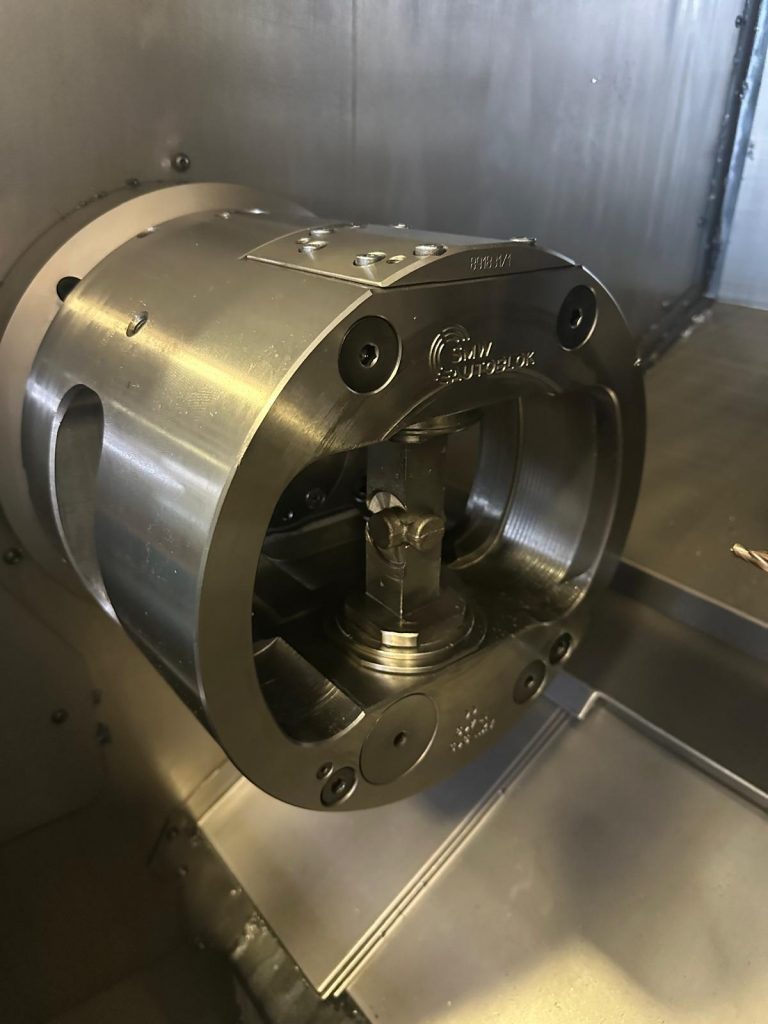

- Autoblock AXN type hydrodividing chuck, 315 mm
- Various live tool holders (radial and axial)
- Operation and maintenance manuals and CE declaration of conformity
Year of manufacture: 2013
