TECHNICAL DATA:

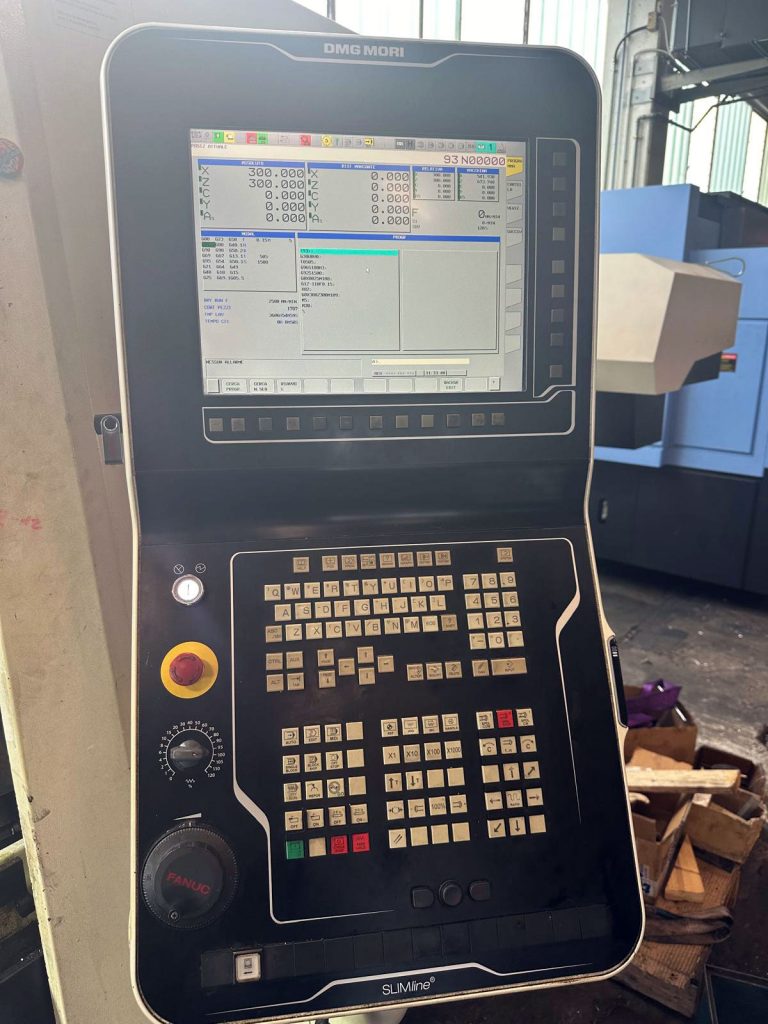

CNC Fanuc Slim line
WORKING AREA:
Rotation diameter on the bench: mm 700
Rotation diameter on the transversal slide: mm 500
Max turning diameter: mm 480
Traverse travel Y: mm ± 60
Traverse travel X: mm 307,5
Longitudinal travel Z: mm 1.240
Rapid (X / Y / Z): m/min 30/22,5/ 30
SPINDLE:
Spindle nose: A2 – 8
Bar passage: mm 102
Front bearing diameter: mm 150
Autoblock self-centering diameter: mm 250
Engine power (40 / 100 % ED): kW 33/22
Max torque (40 / 100 % ED): Nm 630/420
Max rpm: rpm 3.250

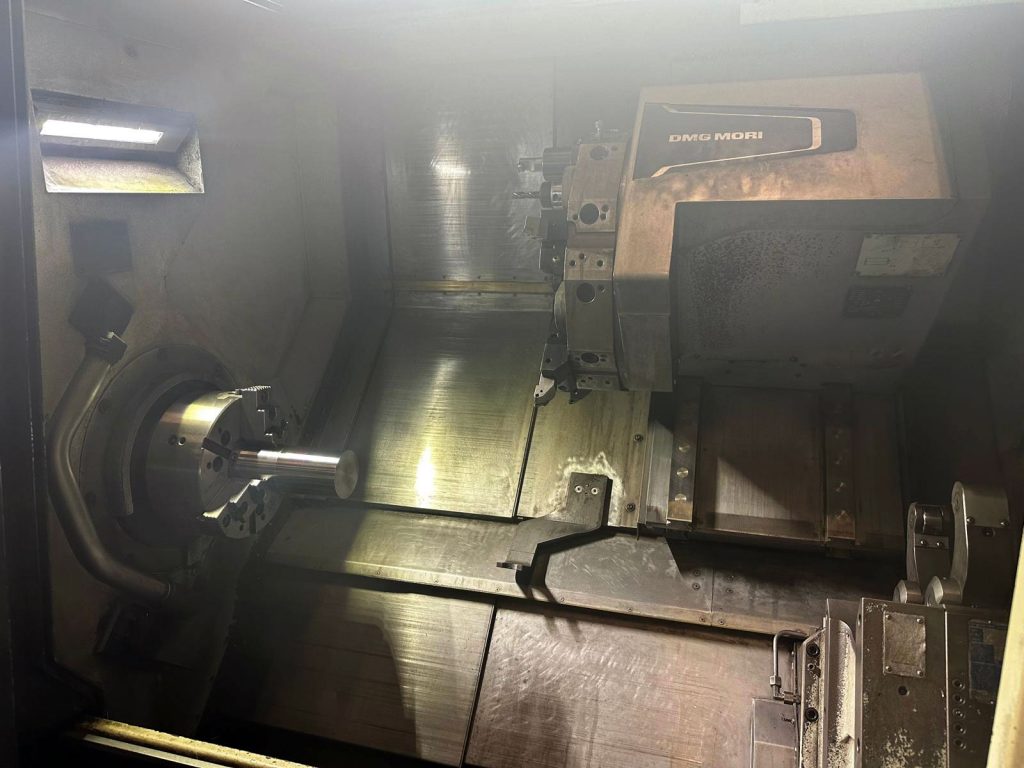

TURRET:
Number of driven tool stations: 12 x VDI 40
Max power (40% ED): kW 5.44
Max torque (40% ED): Nm 20
Max rpm: rpm 4.000
TAILSTOCK:
Tailstock stroke: mm 1.200
Tailstock cone attachment: CM 5
Tailstock max thrust force: kN 12
DIMENSIONS AND WEIGHT:
Weight with chip conveyor: kg 7.500
Installation surface: m2 7,4
Machine complete with:

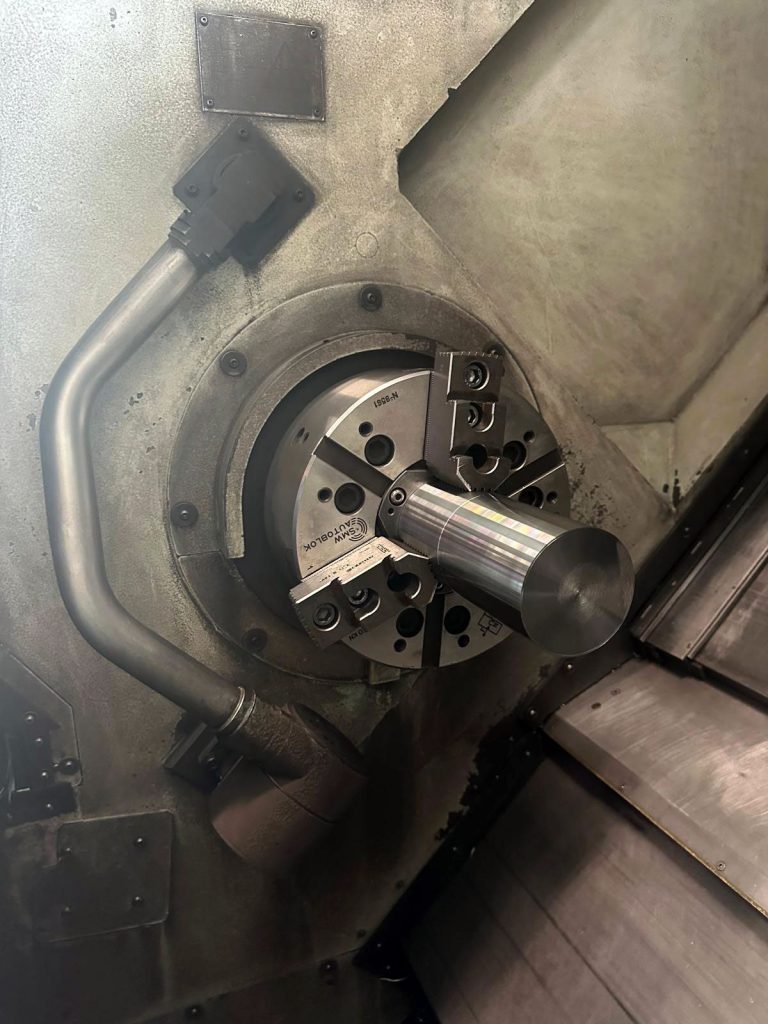

- Autoblock self-centering diam. 250 mm
- Tool setting
- Optical scales on X and Y axes

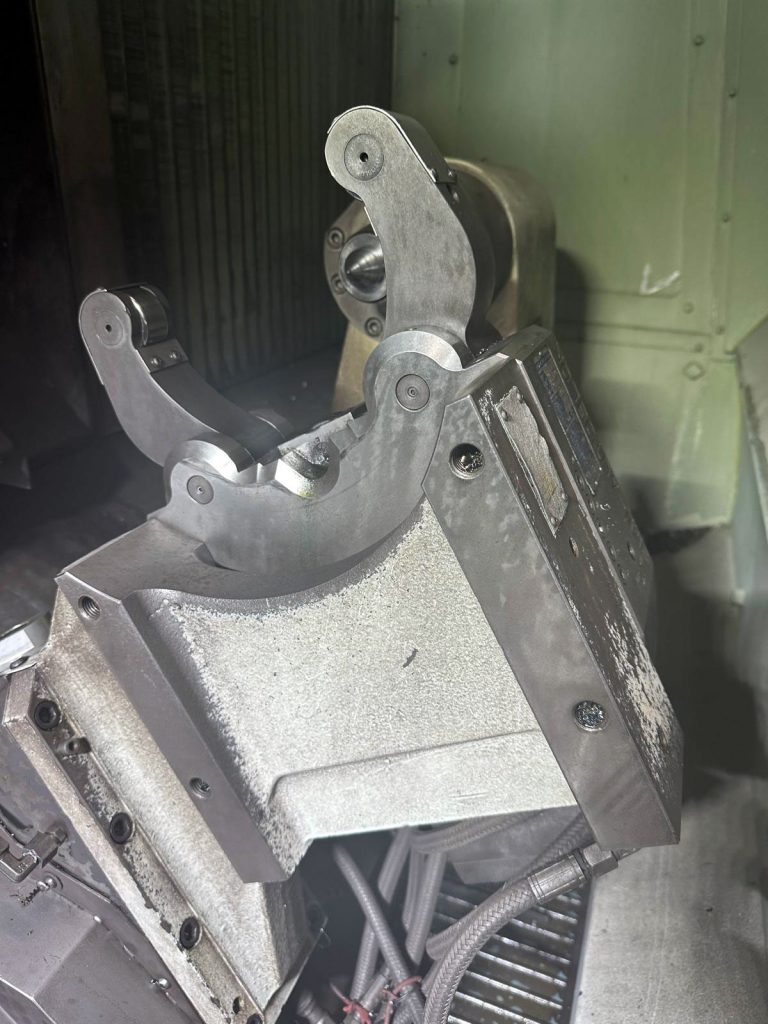

- Autoblock bezel
- Nr. 3 axial motorized modules
- Nr. 3 radial motorized modules
- Set of fixed modules
- Use and maintenance manuals and CE declaration
Year of manufacturing: 2017
