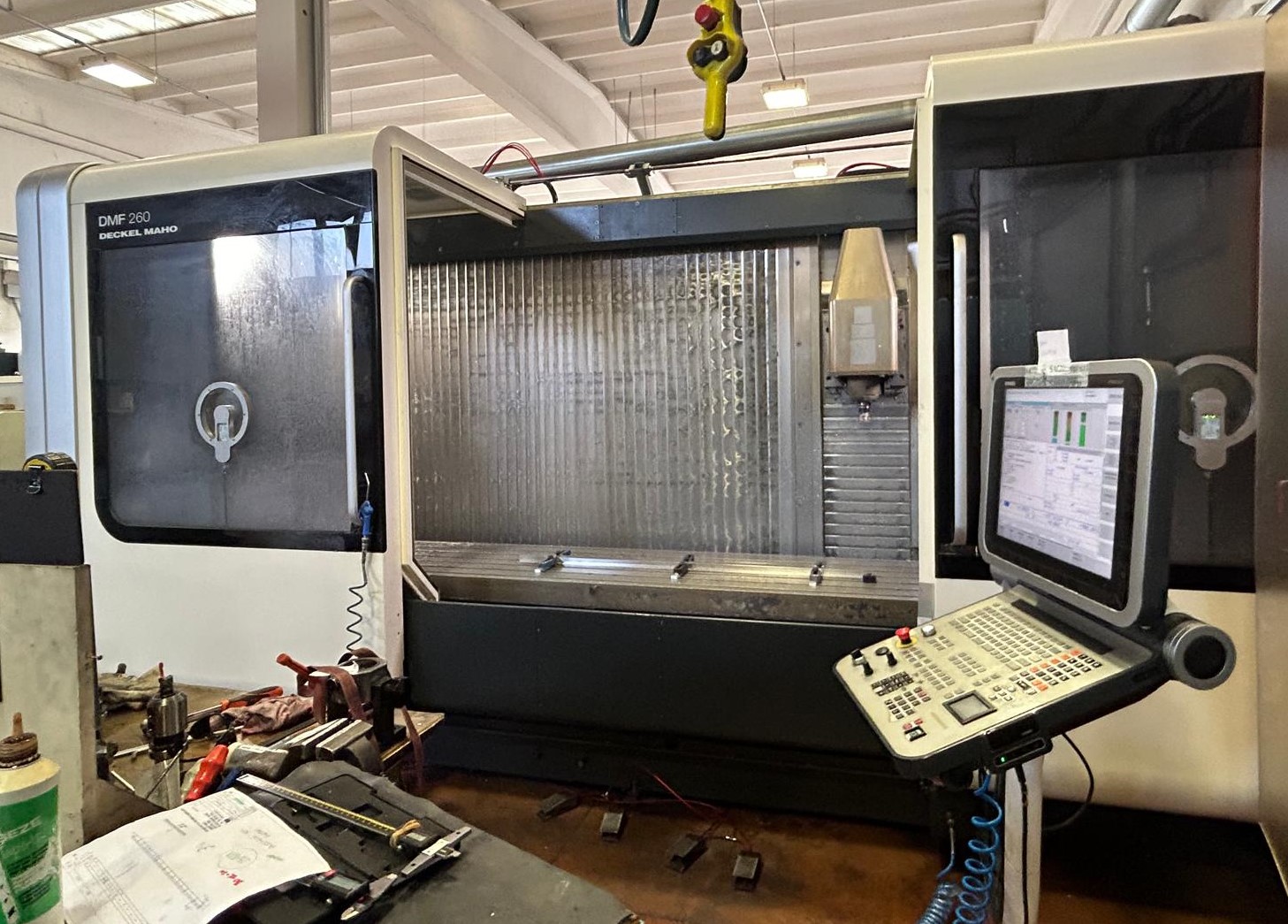

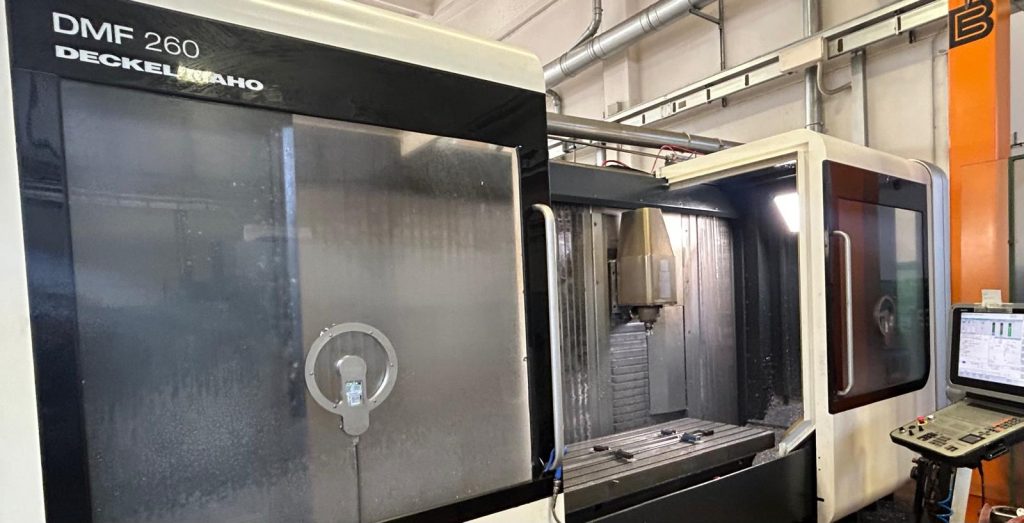

MOBILE COLUMN 5 AXES MACHINING CENTER DECKEL MAHO DMF 260
Centers / Venduto / Vertical Machining Centers /
TECHNICAL DATA:
CNC Heidenhain iTNC 530
FIELD OF WORK:
Longitudinal X: mm 2.600
Trasversal Y: mm 700
Vertical Z: mm 700
SPINDLE:
Max spindle speed: Rpm 18.000
Power (100%/40%): kW 25/35
Spindle cone: HSK A63
FEEDS:
Rapids X/Y/Z: m/min 40
TABLE:
Dimensions: mm 2900 x 700
TOOL CHANGER:
Number of positions: n. 60
Type: chain with double socket
Supplied accessories:

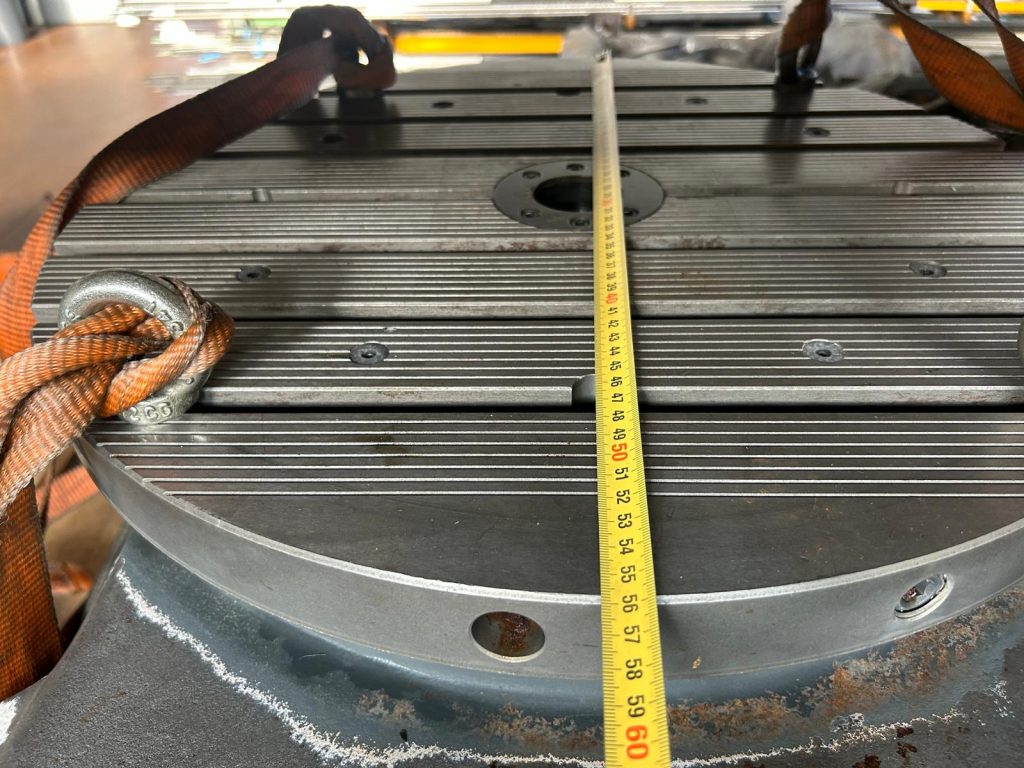

- Overtable diam. 560mm A and C axes
- Removable work area bulkhead for pendulum work
- TS649 infrared probe
- Chip conveyor
- High pressure through the spindle 40 bar
- N.2 Rotoclear devices
- Optical lines pressurizated
- Work area washing gun
- Electronic handwheel
Year of manufacturing: 2010
