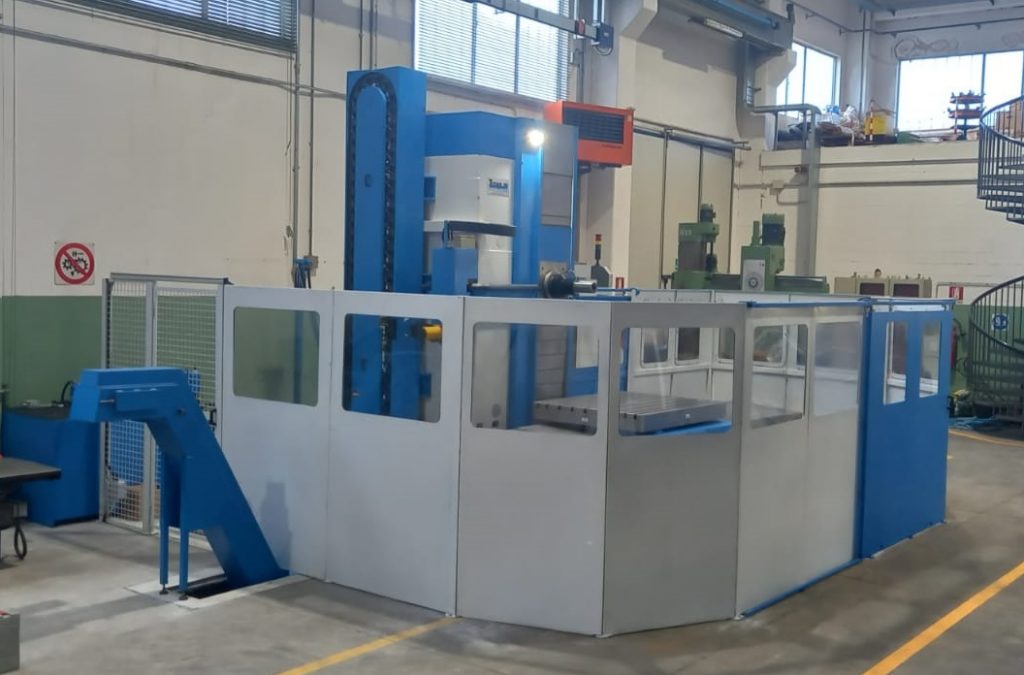

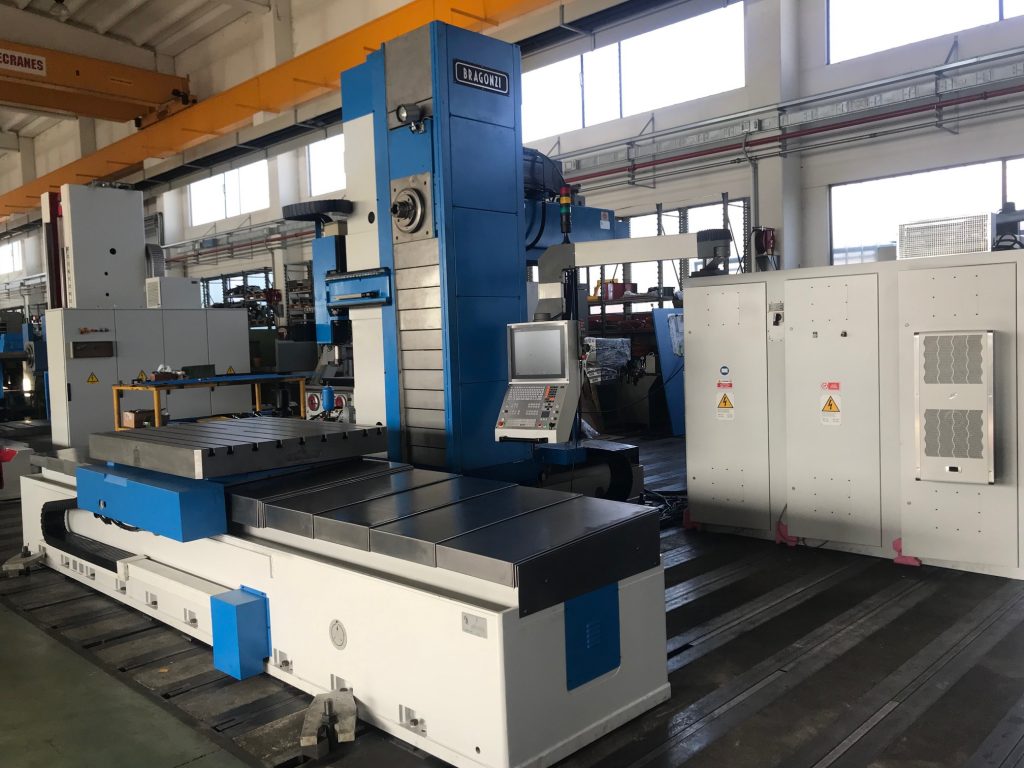

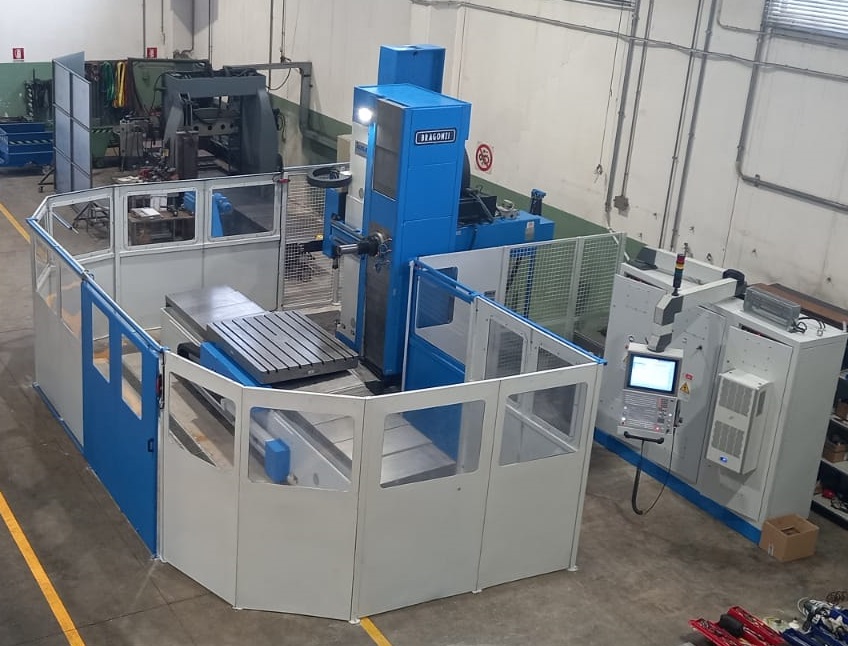

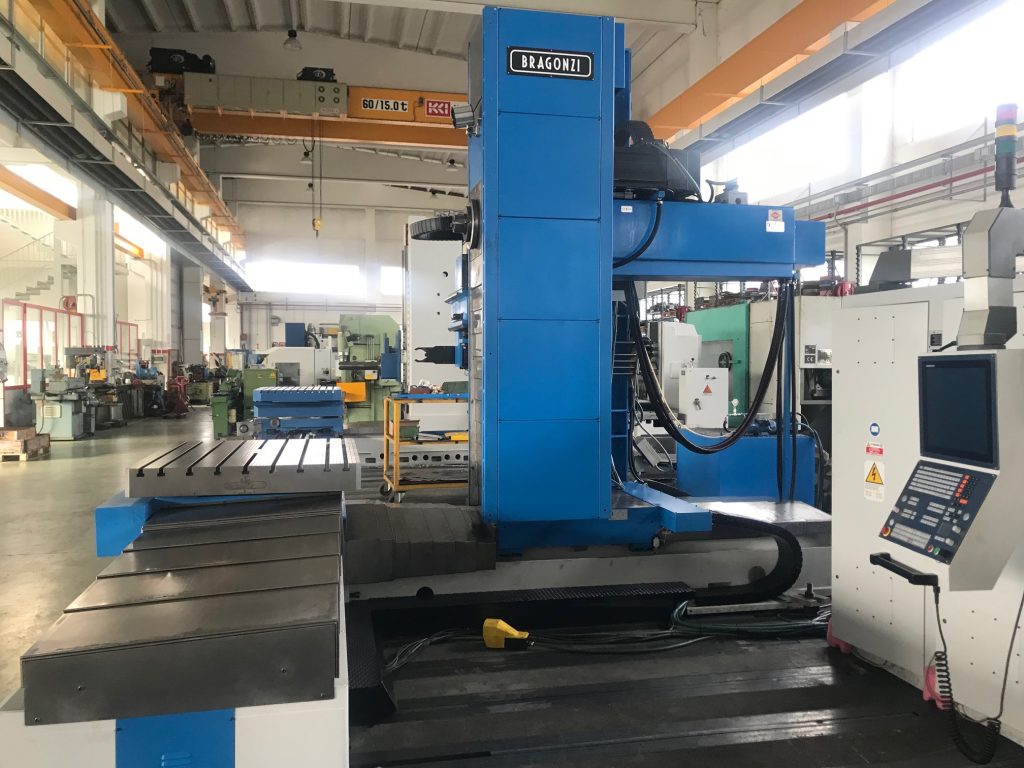

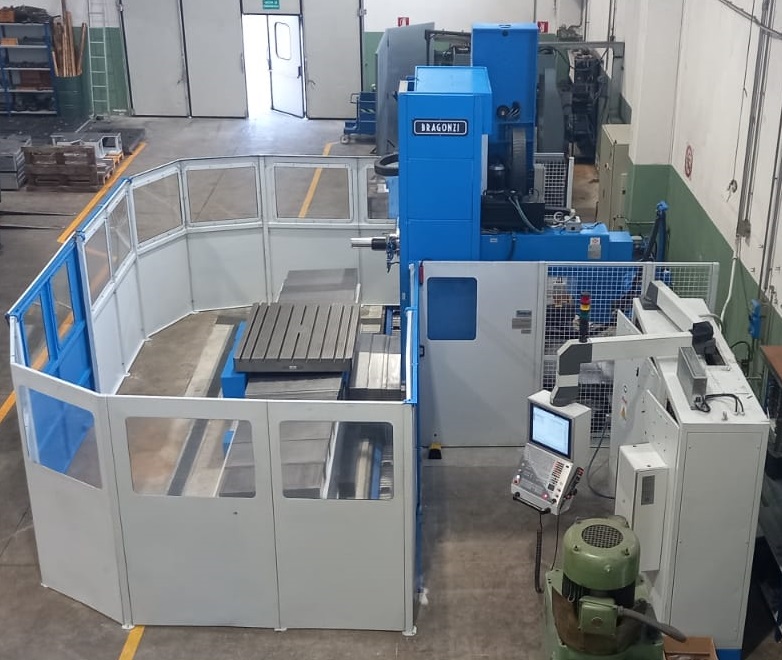

T-TYPE COLUMN BORING MILL BRAGONZI CREUSAMATIC 110 T – MACHINE COMPLETELY OVERHAULED (AS NEW)
Boring Machines / Venduto /
TECHNICAL SPECIFICATIONS:
CNC: Heidenhain TNC 640
_
Spindle
Spindle diameter: 110 mm
Tool holder taper: ISO 50-7388/1 – DIN 69871
Milling cutter holder mounting diameter: 221.44 mm
Tool clamping force: 1,600 daN
_
Travels
Spindle horizontal travel, Z axis: 550 mm
Spindle vertical travel, Y axis: 1,500 mm
Table transverse travel, X axis: 3,000 mm
Column longitudinal travel, W axis: 1,300 mm
_
Table
Table size: 1,500 x 1,220 mm
Maximum load: 4,000 kg
Maximum contouring torque: 250 daN
T-slots: No. 7 – 22 mm H7
Rapid rotation speed: 3 rpm
Table clamping torque: 674 daN
_
Speeds and Feeds
Spindle motor power: 22 kW
Speed ranges: No. 2
Maximum torque, low range: 105 daN
Maximum torque, high range: 31 daN
Spindle speed range: 15 – 3,000 rpm
Constant torque:
• Low range: 15 – 203 rpm
• High range: 50 – 680 rpm
Constant power:
• Low range: 203 – 895 rpm
• High range: 680 – 3,000 rpm
Working feed rates: 2 – 10,000 mm/min
Rapid feed rates: 10,000 mm/min
Maximum axis thrust: 1,600 daN
_
Tool Magazine
Number of tools: 60
Chain pitch: 140 mm
Maximum tool diameter: 138 mm
Maximum large tool diameter: 400 mm
Maximum tool length (excluding taper): 400 mm
Maximum tool weight: 30 kg
Tool interface: ISO 50-7388/1 – DIN 69871
_
Overall Data
Total weight: 24,500 kg
Overall dimensions (L x W x H): 5,350 x 4,770 x 3,700 mm
_
Machine complete with:
• Brushless motors
• Through-spindle coolant
• Quill support
• Heidenhain linear scales
• Chip conveyor
• Operation and maintenance manuals
