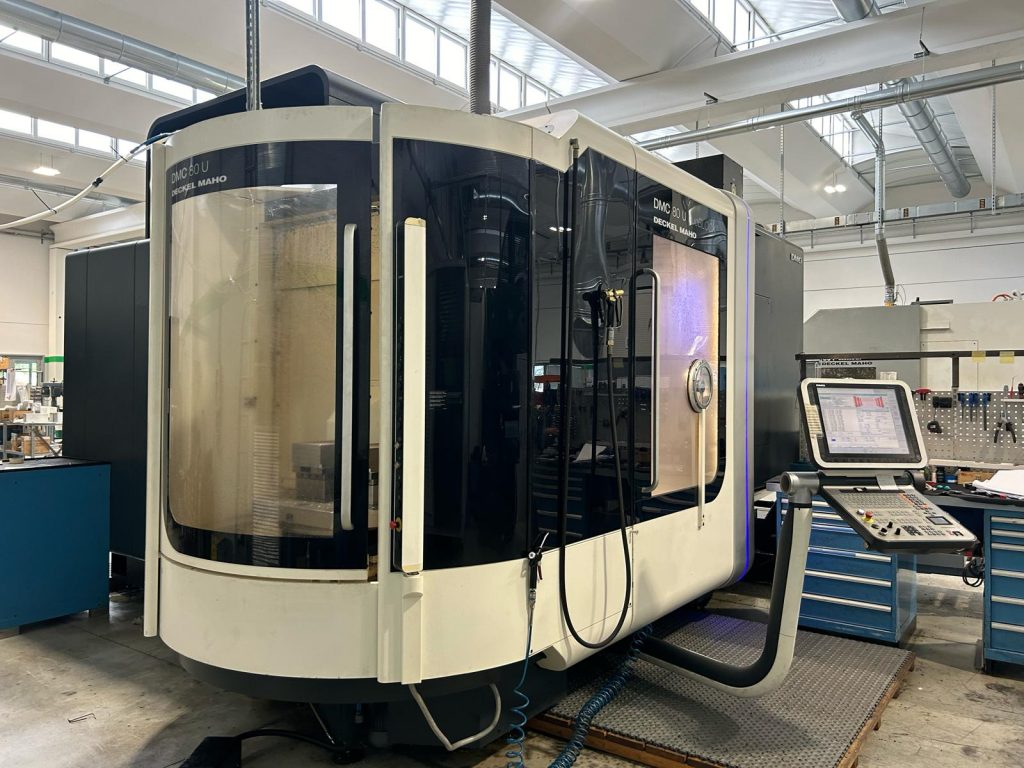

5 AXES UNIVERSAL MACHINING CENTER DECKEL MAHO DMC 80 U duoBLOCK
Centers / Venduto / Vertical Machining Centers /
SPECIFICHE TECNICHE:
CNC Heidenhain iTNC 530 HSCI
TRAVELS:
X axis travel: mm 800
Y axis travel: mm 1.050
Z axis travel: mm 800
B axis travel: 180°
C axis travel: 360°
ADVANCEMENTS:
Rapid feed speed in the X, Y, Z axes: m/min 40
Acceleration in the X, Y, Z axes: m/s2 7 / 6,5 / 6,5
ELECTRO SPINDLE:
Electro spindle rotation speed: giri/min 18.000
Tool attachment cone: ISO 40
Power: kW 35
Torque: Nm 130
TABLE:
Fixing surface: mm 800 x 630
Maximum capacity: kg 1.000
Machine equipped with:

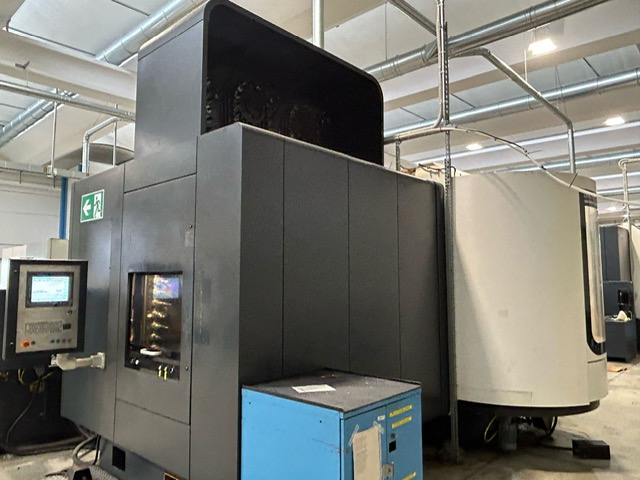

- Tool changer 240 positions
- Heidenhain TS640 workpiece probe
- Checking tool breakage in the tool changer
- quickSET 3D predisposition
- High pressure through the spindle 40 bar
- Tank with paper filter
- Integrated fume extractor
- Tool loading/unloading side control panel
- Power failure protection package
- FASTEMS automation predisposition
- Instruction manuals and CE declaration
Year of construction: 2011
